RADIATOR FOR CASE IH TRACTOR, OE 84262310 Specification

Short Description:

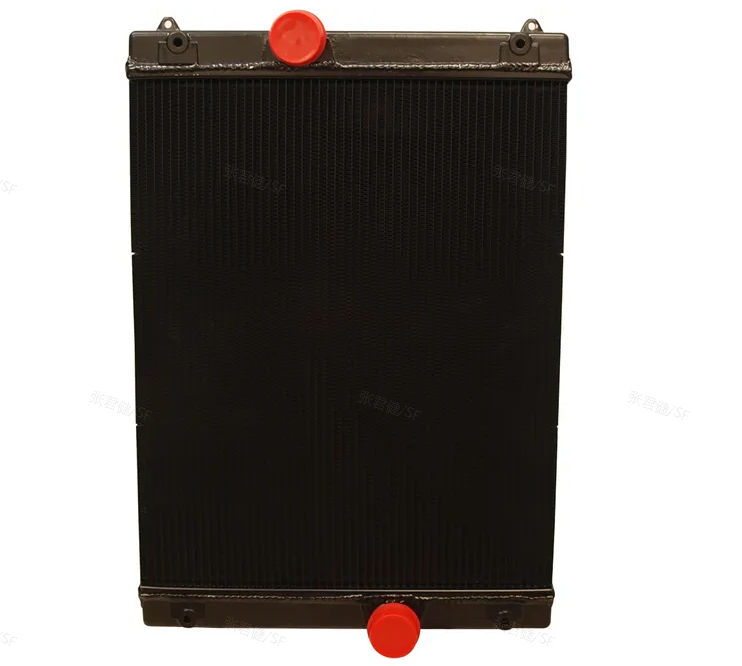

The radiator with OE number 84262310 is a heavy-duty all-aluminum component specifically designed for CASE IH® Magnum series tractors, suitable for models with 235–380 horsepower. It is engineered to deliver efficient heat dissipation and strong durability, perfectly matching the original equipment standards for seamless replacement and reliable performance in agricultural heavy-duty operations.

In terms of basic information, this radiator features an all-aluminum structure, including aluminum tanks and an aluminum core, adopting a cross-flow cooling design without an oil cooler. It weighs approximately 54 pounds (about 24.5 kg) and comes with a 12-month warranty for after-market parts. It has passed multiple certifications such as ISO9001, TS16949, CE, and RoHS, ensuring high quality and compliance with international standards.

Regarding dimensional parameters, the total height (including brackets) is 31 inches (787.4 mm), and the total width is 20 7/8 inches (530.2 mm). The core dimensions are 24 7/8 inches (631.8 mm) in height, 20 1/2 inches (520.7 mm) in width, and 5 1/4 inches (133.4 mm) in thickness, generally marked as 628×500×127 mm in the industry. Both the inlet and outlet diameters are 2 1/4 inches (57.15 mm), consistent with the original tractor interface.

For the heat dissipation structure, it adopts a 5-row tube design with a fin density of 10 fins per inch (10 FPI) and serpentine fins. The sealed all-aluminum brazed structure enhances corrosion resistance and vibration resistance, adapting to dusty and humid agricultural environments. It effectively meets the continuous high-load heat dissipation needs of the Magnum series’ high-horsepower engines.

This radiator is fully compatible with CASE IH® Magnum 235, 250, 260, 280, 290, 310, 315, 340, 370, and 380 tractors, with the same mounting feet and interfaces as the original OE part, requiring no modification during replacement. After-market alternative models include AM84262310, SC‑211133, and CS‑727, with a price range of $945–$1,300. （C.）

Send email to us

Product Detail

Product Tags

The radiator with OE number 84262310 is a heavy-duty all-aluminum component specifically designed for CASE IH® Magnum series tractors, suitable for models with 235–380 horsepower. It is engineered to deliver efficient heat dissipation and strong durability, perfectly matching the original equipment standards for seamless replacement and reliable performance in agricultural heavy-duty operations.

Basic Information

This radiator features an all-aluminum structure, including aluminum tanks and an aluminum core, adopting a cross-flow cooling design without an oil cooler. It weighs approximately 54 pounds (about 24.5 kg) and comes with a 12-month warranty for after-market parts.

Certifications: ISO9001, TS16949, CE, RoHS

Weight: 54 lbs / 24.5 kg

Warranty: 12 Months

Dimensional Parameters

Parameter	Imperial	Metric
Total Height (incl. brackets)	31 in	787.4 mm
Total Width	20 7/8 in	530.2 mm
Core Height	24 7/8 in	631.8 mm
Core Width	20 1/2 in	520.7 mm
Core Thickness	5 1/4 in	133.4 mm
Industry Core Size	628 × 500 × 127 mm
Inlet / Outlet Diameter	2 1/4 in	57.15 mm

Heat Dissipation Structure

5-Row

Tube Design

10 FPI

Fin Density

Brazed

All-Aluminum Sealed

The radiator adopts serpentine fins and a sealed all-aluminum brazed structure, enhancing corrosion resistance and vibration resistance — adapting to dusty and humid agricultural environments. It effectively meets the continuous high-load heat dissipation needs of the Magnum series’ high-horsepower engines.

Compatible Models

This radiator is fully compatible with the following CASE IH® Magnum tractors, with the same mounting feet and interfaces as the original OE part — no modification required during replacement:
