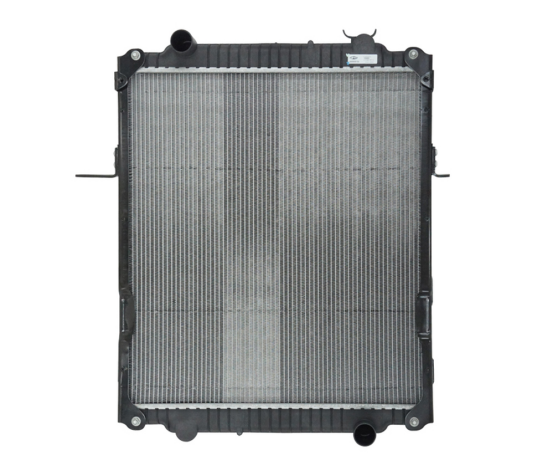

Volkswagen Caminhoes Radiator (OE: 2T2.121.253.AC) Parameter Description
The radiator with OE number 2T2.121.253.AC is an original equipment matching product produced by Visconde-Modine, specifically designed for Volkswagen Caminhoes Constellation 17-250 and 24-250 diesel trucks manufactured between 2006 and 2013. As the core component of the truck’s engine cooling system, it is fully compatible with the original vehicle’s installation dimensions and performance requirements, ensuring stable operation of the engine under various working conditions.
Basic Specifications
In terms of basic specifications, the overall dimensions of the radiator are 733mm in height, 667mm in width, and 56mm in thickness, with a net weight of 15.2kg. It adopts a tube-and-fin aluminum brazed integrated structure, which is a mainstream and reliable structure for heavy-duty truck radiators. The cooling medium is engine-specific ethylene glycol coolant, which is fully compatible with the original cooling system’s pressure standard, effectively preventing overheating and corrosion.
| Parameter | Value |
|---|---|
| OE Number | 2T2.121.253.AC |
| Height | 733 mm |
| Width | 667 mm |
| Thickness | 56 mm |
| Net Weight | 15.2 kg |
| Structure | Tube-and-fin aluminum brazed integrated |
| Cooling Medium | Ethylene glycol coolant |
Core Structure & Materials
For the core structure and materials, the core body uses full aluminum brazing technology. The heat dissipation tubes are high-density multi-channel flat tubes, and the heat dissipation fins are corrugated reinforced structures, which greatly increase the heat exchange area and improve heat dissipation efficiency. The core body has no spliced welds, ensuring strong pressure resistance and vibration resistance, which is suitable for the bumpy road conditions of heavy trucks during long-distance transportation.
Water Chambers & Installation
The water chambers are made of engineering plastic, which is resistant to high and low temperatures and corrosion. They are connected to the aluminum core body with special sealing rings, ensuring stable sealing performance and eliminating the risk of leakage. The size of the water chamber interface is completely consistent with the original factory, and the installation interfaces, including the water inlet and outlet, are matched with the original vehicle, with fixed bracket holes reserved, allowing direct replacement without modification.
Vehicle Compatibility
This radiator is precisely adapted to the following Volkswagen Constellation models:
Its excellent heat dissipation performance can quickly take away the heat of the engine block and cylinder head, ensuring the engine temperature is stable when the truck is fully loaded or climbing. With original factory quality standards, it has good durability and comes with a 90-day quality guarantee. It is an ideal replacement part for daily maintenance and repair of heavy trucks, and we can provide customized OEM solutions according to customer needs.
